ZEISS ScanBox Series 4
Mobile stand-alone measuring solution for the production environment

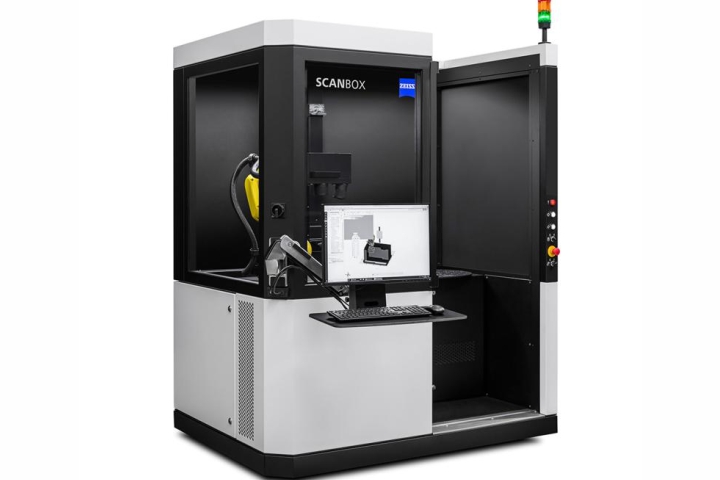

With the ZEISS ScanBox 4105 optical 3D measuring machine, you can quickly and efficiently inspect small and complex parts up to 500 mm in size. The compact and mobile system is ready for immediate use thanks to the plug & play concept and can be easily repositioned if required. All measuring processes and inspection sequences can be started directly at the integrated operating station. The special user interface – the Kiosk Interface – and the virtual measuring room (VMR) in the ZEISS INSPECT software take over the entire process control.
Compact design with small footprint
Automated inspection of small and complex parts
Easy operation at the touch of a button
Plug & Play
Turnkey 3D measuring machine
ZEISS ScanBox 4105 can be connected to any standard power socket: Simply switch on the optical 3D measuring machine and start the measuring program.
Easy operation
Automated process control at the touch of a button

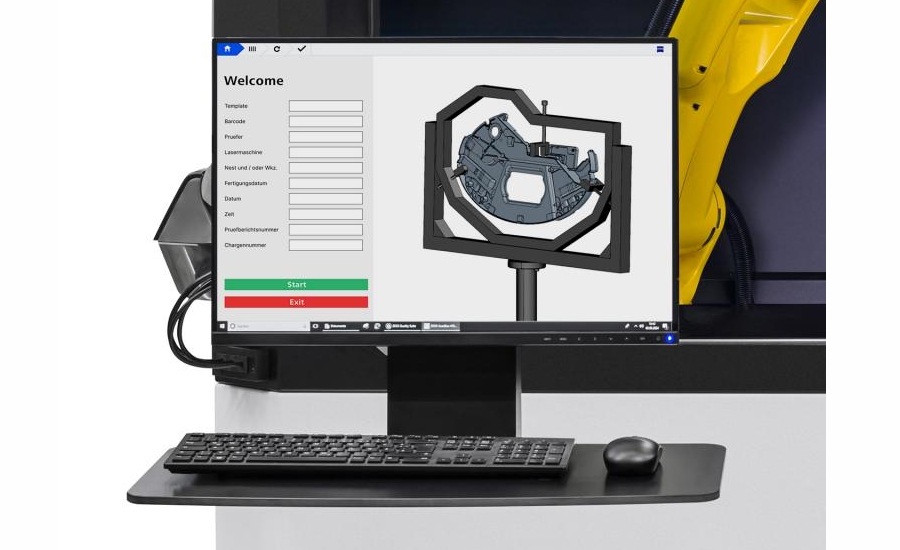

Program and control the optical 3D measuring machine via a simple user interface – the Kiosk Interface. Your plant employees do not need any special technical knowledge to operate it: Insert the part, select the measuring program and press the start button.
Ergonomic functions
Operation while standing or sitting

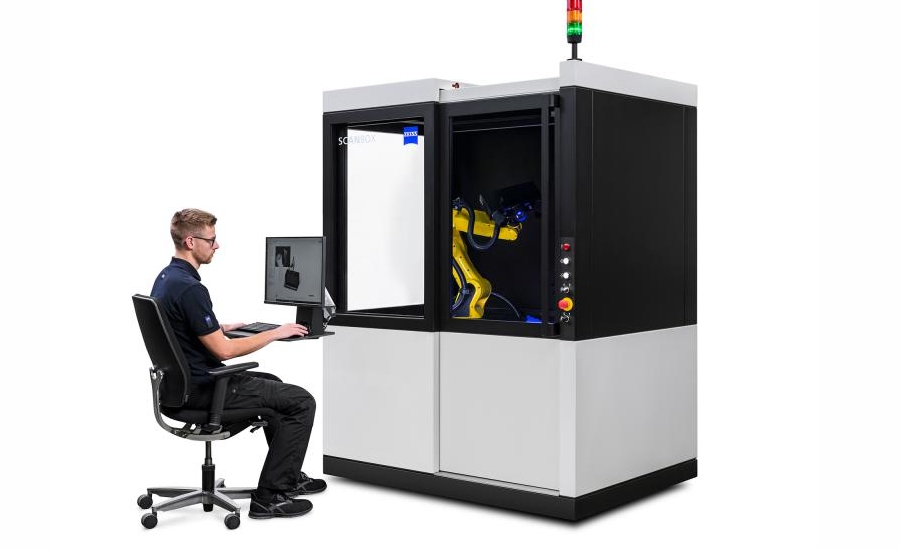

The flexible operating station offers various ergonomic functions: The integrated swivel arm can be adjusted to the desired position so that ZEISS ScanBox 4105 can be operated while standing or sitting.
Automated loading and autonomous part inspection
ZEISS ScanBox Series 4 RC

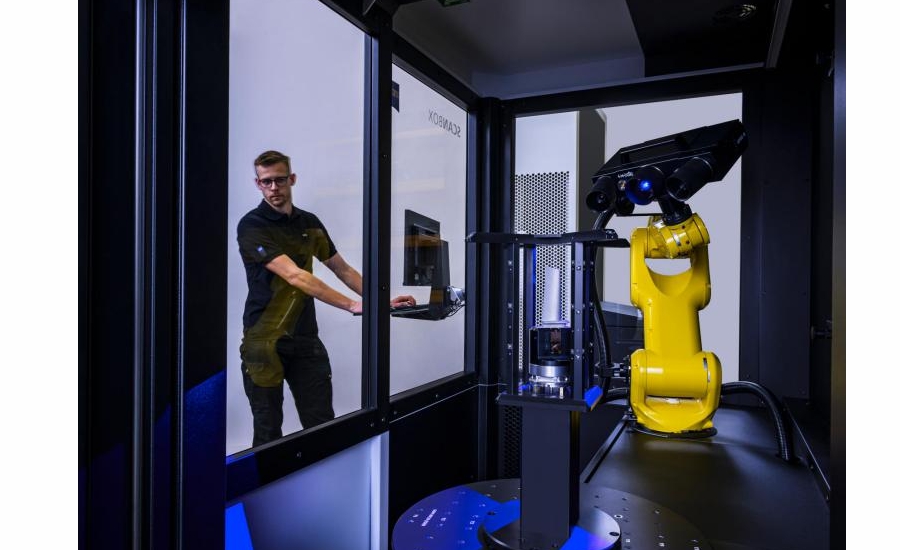

ZEISS ScanBox Series 4 RC (Remote Control) is a new optical 3D measuring machine with a motorized sliding door. The parts to be inspected are automatically loaded into ZEISS ScanBox Series 4 RC by a robot or an individually configured loading system and placed on the rotation table module. By eliminating the need for manual individual placement, the time required is significantly reduced, thus ensuring a higher throughput in quality assurance.
Fast & precise
ATOS Q meets high metrological demands

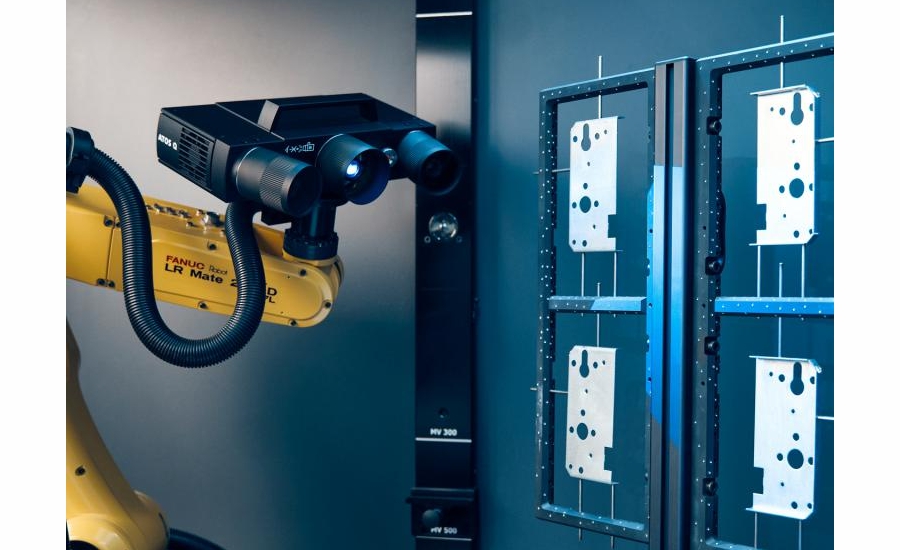

The integrated ATOS Q sensor quickly provides quality information with a high level of detail for subsequent inspection and analysis. By using a multi-part fixture, you can measure several parts in one run - even in 24/7 operation if required: This allows you to increase your throughput, produce less scrap and standardize your quality assurance.
Virtual Measuring Room
Real environment in a virtual simulation

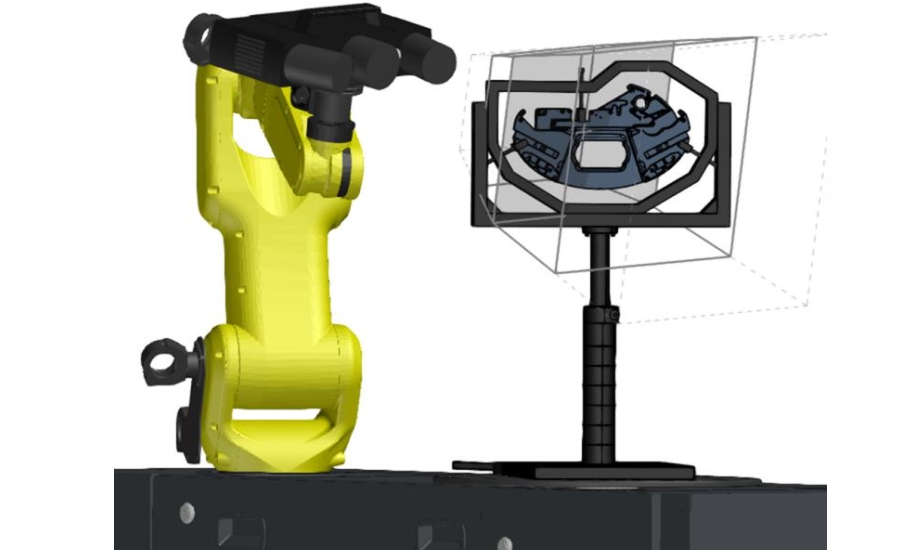

The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machine. It offers the functional representation of a real measurement environment in a virtual simulation. The VRM consists of a robot with a sensor, the programming, including the kinematics of the robot paths, the part and the measurement plan. Thanks to the VMR, the user does not need any special robot expertise. All robot movements are simulated in the virtual measuring room before execution and checked for safety.
